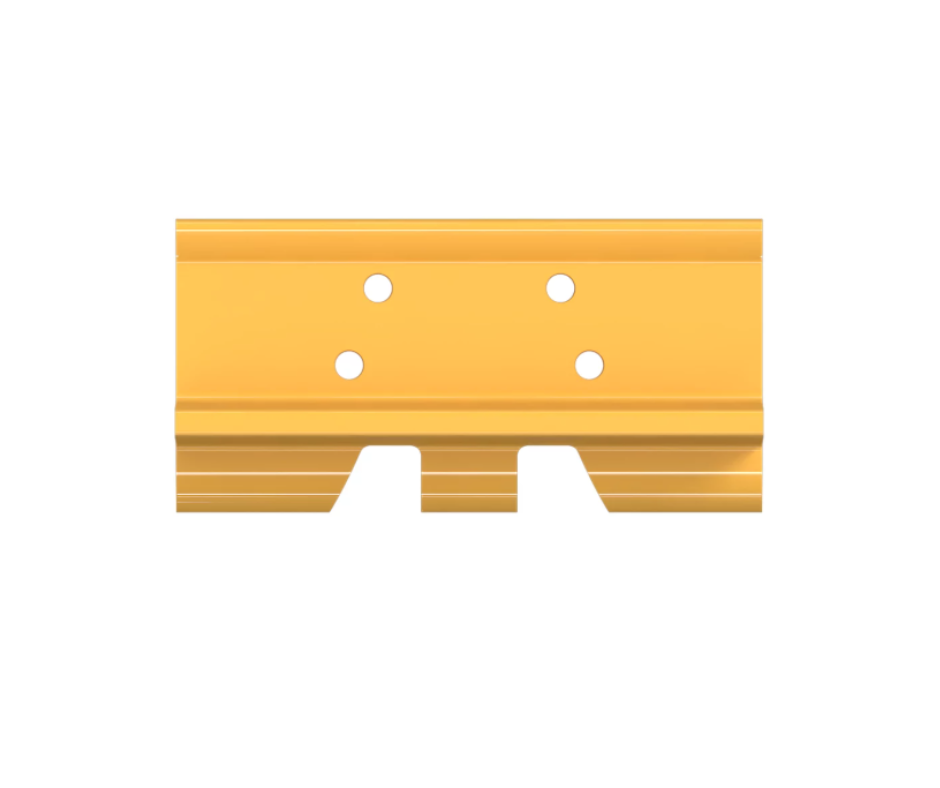

Master Track Shoe – Super Extreme Service (SES) CatD10T

Description

Master Track Shoe – Super Extreme Service (SES)

Part Number: Z01101V0N0610V Part Number: 276-2416

Track shoes provide essential traction, flotation, and protection for the undercarriage system. This master track shoe is specifically designed to be installed over the master link, ensuring secure fitment and structural integrity within the track assembly.

Engineered for the most demanding environments, the Super Extreme Service (SES) design delivers significantly improved wear resistance and durability compared to standard and extreme service options.

Key Features & Benefits

• Super Extreme Service (SES) Performance
  Provides up to 25% longer wear life compared to extreme service shoes in high-abrasion applications.
• Master Shoe Configuration
  Designed for installation on the master link, ensuring correct alignment and secure connection within the track system.
• High Strength Boron Steel Construction
  Manufactured from tough alloy steel to resist bending, cracking, and heavy impact.
• Enhanced Traction & Stability
  Single grouser design delivers strong ground engagement across demanding terrains.
• Clipped Design
  Improves clearance and performance in specific applications where material build-up is a concern.

Technical Specifications

• Shoe Type: Super Extreme Service (SES)
• Joint Type: 5T Master
• Grouser Type: Single Grouser
• Shoe Width: 610 mm
• Material: Boron Steel
• Plate Thickness: 22.5 mm
• Hole Type: Square
• Clipped: Yes
• Bolt Hole Diameter: 29.9 mm
• Master Bolt Thread: 1.125

Bolt Hole Spacing

• A: 80 mm
• B: 190 mm
• C: 250 mm

Application

Suitable for mining, quarrying, and heavy earthmoving operations where maximum durability, extended wear life, and reliable undercarriage performance are critical.

Compatible Models:
